Special functions ▍

u Waveform retest

u Waveform filtering

u Voice announcement

Functional characteristics ▍

u Double collection test of rocks in the holeDrilling rocksLongitudinal wave velocity;CliffBodyRock massWave speed;Low frequencyPulse test.

Working principle ▍

Acoustic well loggingYesWhen the waves formed after the exciter vibrates, they spread along the well liquid to the well wall (rock body). At this time, the wave with an angle of incidence greater than the critical angle forms a refraction wave, which first reaches the first line of the pick-up and then reaches the second channel of the pick-up. At the same time, the host recorded the whole process of vibration of the first and second channels of the pickup. According to the analysis of the wave chart, the first to reach the first and second channels of the receiver was the longitudinal wave.

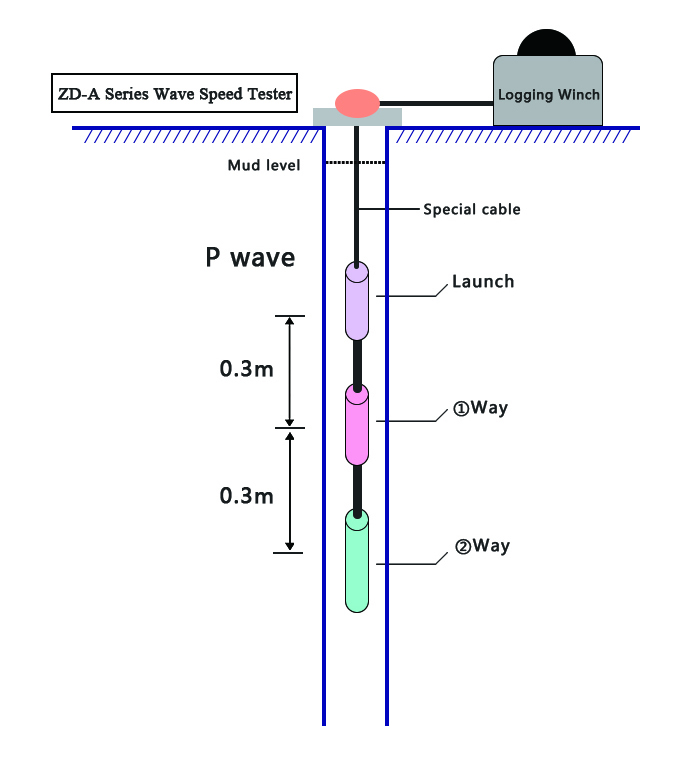

Working diagram

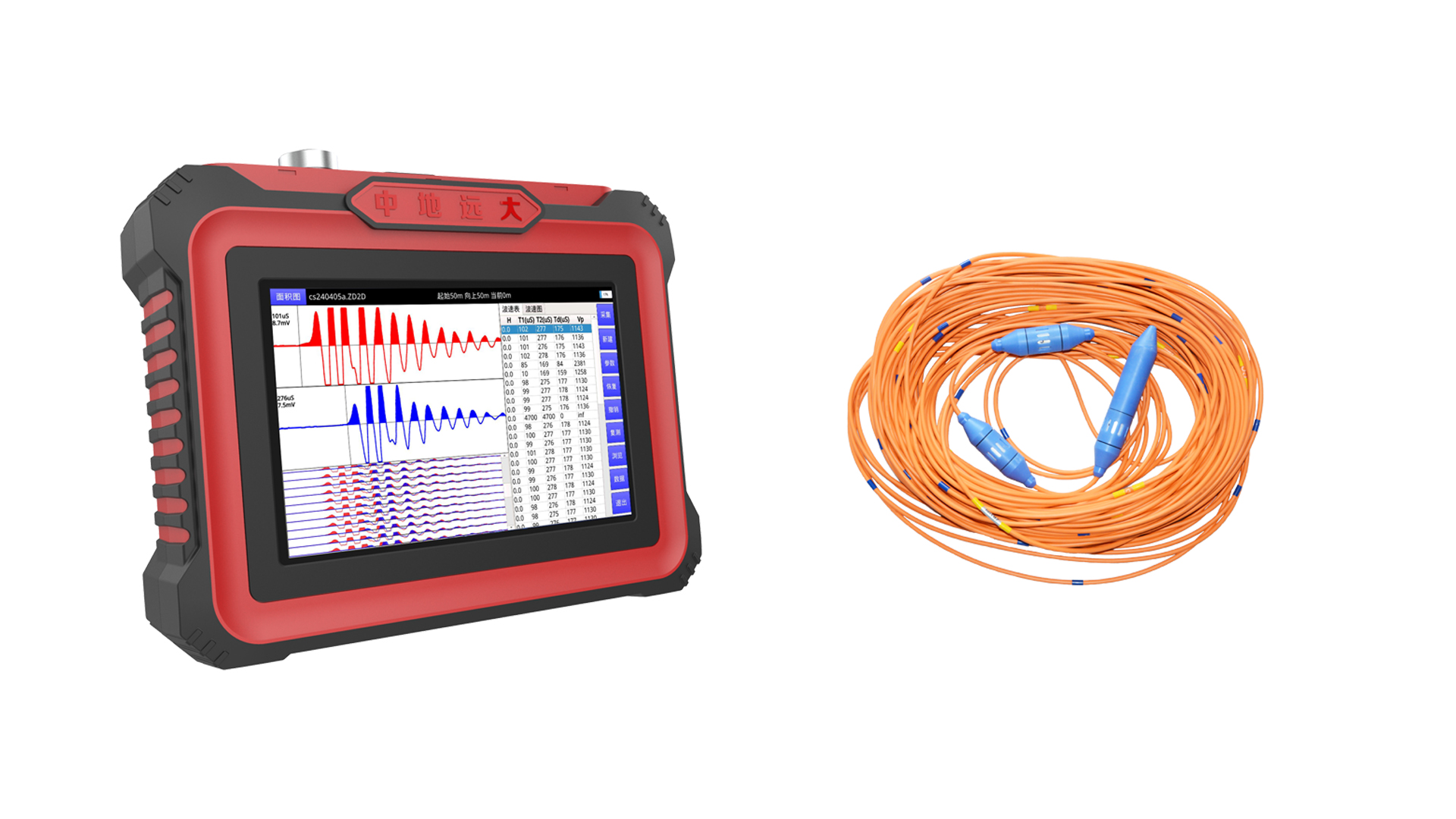

ZB100Sound well logging probe ▍

The sound wave test is a double-retracted underground transducer, which is sent to receiveOneSpacing 30 centimeters, Reception one to reception two spacing30cm. Collect the first waveform and automatically read the starting jump point to determine the beginning time of the longitudinal wave, and calculate the longitudinal wave velocity.

Geotechnical wave speed test ▍

Host parameters ▍

Collection parameters ▍

SystemParameters ▍

Intellectual abilityCloudParameters ▍

ZB100Sound wave well logging probe  ▍

ZD-PP50Longitudinal wave plane transder ▍

ZD-PS10Transverse wave plane transder ▍

Manual self-integrated winch: (optional) ▍

ZDMSZhongdiyuan large wave velocity test and analysis software(Abbreviation: Analysis Software) ▍

l ZDMSZhongdiyuan large wave speed test and analysis software is equipped with independent intellectual property registration code.1Set;

l AnalyseSoftware supportWin7/8/9/10/11, support Chinese and English, compatible with wireless automatic update and upgrade function;

l The analysis software has a waveform diagram,Curve chart, wave chart, data table, grayscale chart, including the effect of floor plan and profile.

l The analysis software hasAutomatic high and low channel filtering, waveform fitting, automatic search for initial value, waveform curve color customization settings;

l The analysis software has waveform profile, floor plan andHV(D-S),HV((D-T),HV-2DCurve export function;

l Analysis softwareOutput report supportMicrosoft Office(Word,Excel),Word processing system,Text file,Bmp,Jpg,Pdf,SegEqualEightKind of format;

l Analysis softwareEquivalent speed supports geotechnical specifications20m, railway norms25 meters, with automatic calculation of layer-by-layer equivalent velocity value andArbitrary depth settingFunction;

l  Analysis softwareWaveform diagram export supports single-channel waveform diagram, dual-channel waveform diagram andHV.The simultaneous export method of curves;

l Analysis softwareThe data waveform curve supports data, wave speed,HV.Curve on the same screen display function;

l Analysis softwareThe report header supports the free deletion and addition of project name, drilling number, drilling height, tester, etc.;

l Analysis softwareFruitionFigure supportStrata division, strata description, strata legend, height, original curve,HV.Curve, time distance (HT) Curves, bar charts and other custom functions can be freely selected according to the actual situation;

l Analysis software output supports customizationPage header, footer, page settings,Page support selectionA4,A3,A2;

l Analysis softwareOutput supports raw data, data summary, engineering information, time, Poisson ratio µ,EDimension,GenerationDimension,HV.Free curve setting function;

l The waveform setting of the analysis software supports each wave velocity time click display time, positive and reverse settings, and one or two waveforms are displayed in the same window.

Standard configuration ▍
