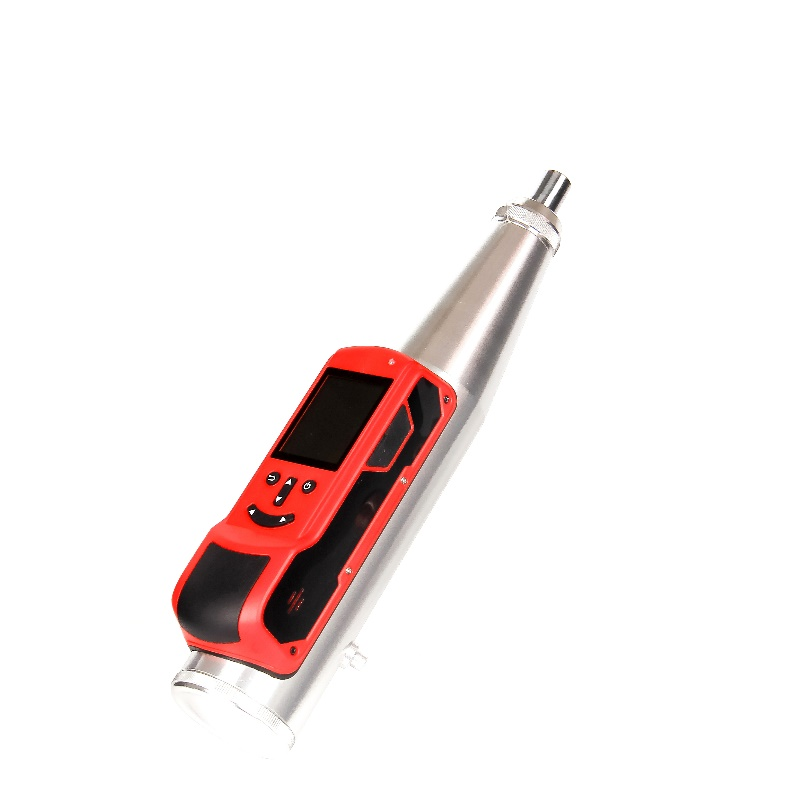

- ZD912 Digital Test Hammer
ZD912 Digital Test Hammer
（ZD912 Digital Concrete Test Hammer）
1. Product description :
ZD91 Digital Test Hammer automatically Record, Save, Calculate and Processing data.
2. Application:
u Rebound method for testing compressive strength of concrete；
u Concrete uniformity testing；
u Normal concrete strength estimation；
u Uniformity testing of concrete；
u Screening of concrete to identify coring locations.
1. Applicable standards:
China ：JGJ-T23
USA： ASTM C805，ACI228.1R
Europe：EN12504-2，EN13791
Russia： GOST 22690-2015
Japan：JCSE-G504
ISO 1920-7
JIS A1155

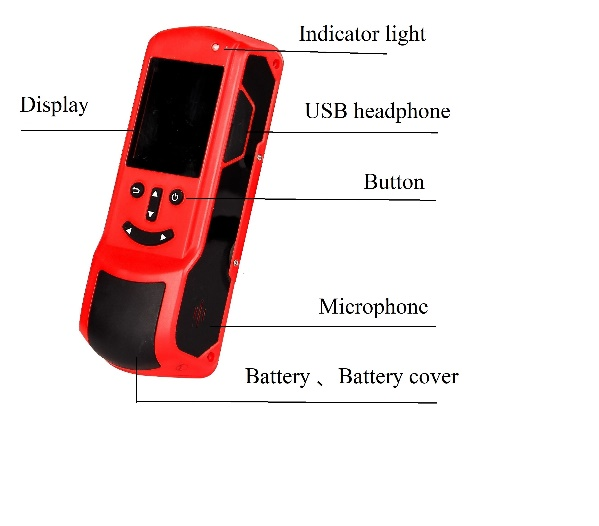

4. Features:
1. Automatically display and record the rebound value, and calculate the converted intensity value of each measurement area and the estimated strength of the component according to the relevant inspection specifications.
2. 2.0-inch color LCD screen (220 × 176 pixels), clearly visible inspection data in any situation.
3. Color digital module and mechanical rebound meter can be disassembled at will.
4. Standard battery module, free to dismantle, replace anytime, anywhere, fully realize double power and double charge, unlimited field test.
5. Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined elegant design, smiling look and feel.
6. Support Simplified Chinese and English multi-language display.
7. Multiple data transmission modes, simple, accurate and convenient operation.
8. The carbonization value in the measurement area can be entered 3 times and the average value is automatically calculated.
9. Selective transmission, printing, export, and deletion of test components, easy operation;

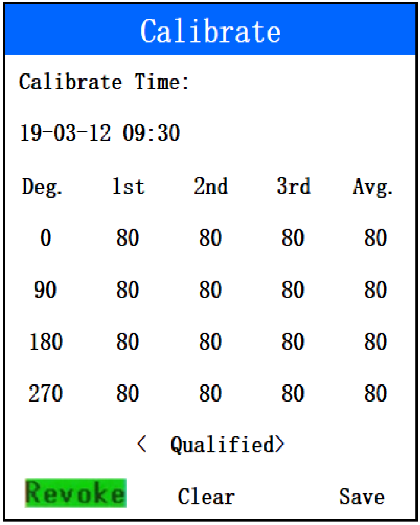

10. Built-in steel anvil calibration function to record calibration information.
11. Support personal customization (contact supplier before purchasing) instrument standard specification and program update function.
12. Optional Bluetooth printer for on-site data printing, efficient and intelligent, easy to record raw data on site (limited to different models).
13. Equipped with business diagonal cross leather bag, easy to carry, easy to operate, easy to use, and wear-resistant
14. Noisy scene, you can use universal headphones (earphones are provided), plug in the earphone dedicated port to avoid external interference
15. Any on-site operator of this product can freely disassemble and replace the rebound meter without training (see operation video for details)
5. Main Specification:
Digital Parts | |
Display | 2.0inch （220×176 pixels ） |
Language | Chinese、English |
Output Mode | Digital display, Voice report |
Storage Capacity | 2000 pcs, 640 thousand data |
Turn off | Automatic turn off without operation |
Power supply | 3.7V Lithium battery, 1050 mA. (removable at will), support dual power dual charge |
Operation method | Silicone buttons |
Communication Interface | USB interface |
Port | USB |
data processing | Automatic data analysis and test report export |
Collection Mode | Automatic display and record data |
Size(mm） | 150×62×39 |
Weight（kg） | 0.1kg（include battery） |
Schmidt Hammer | |
Standard impact energy | 2.207J |
Rigidity of tension spring | 7.85N/m |
error range for digital displayer | ≤±1（the difference between displayer and scale） |
Average rebound hammer on steel anvil Rm | 80±2 |
Size（mm） | Ø60×280 |
Weight（kg） | 0.1kg |

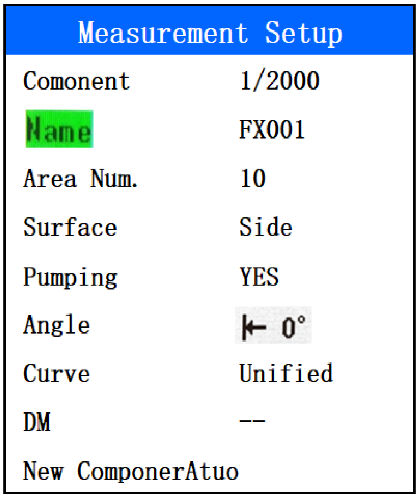

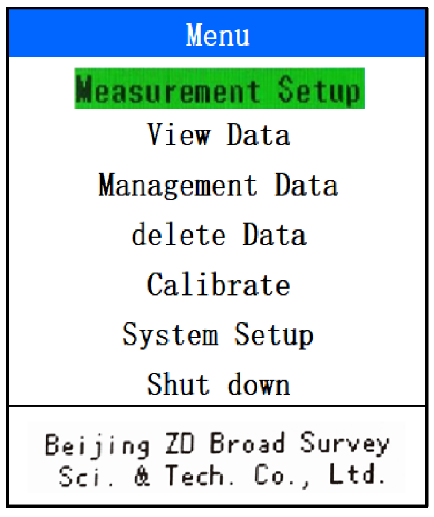

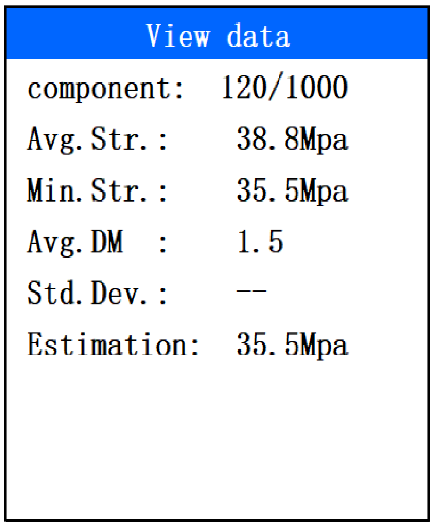

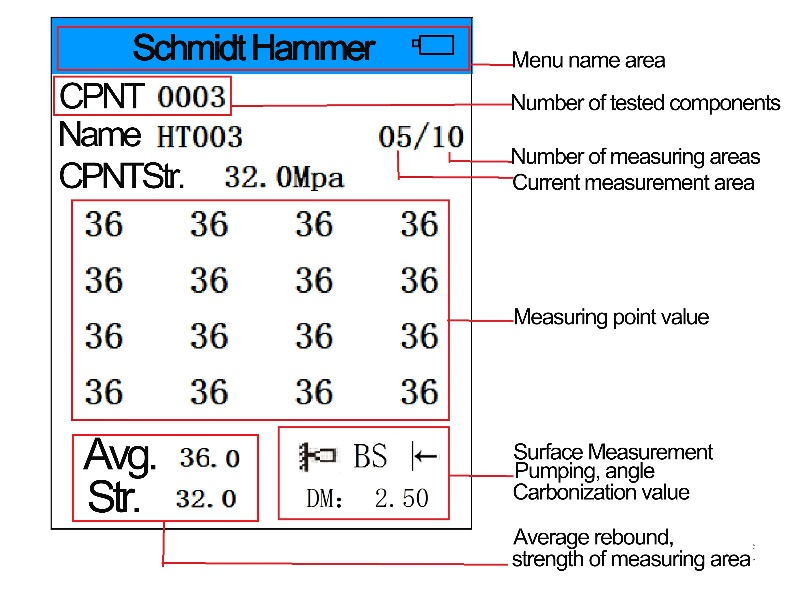

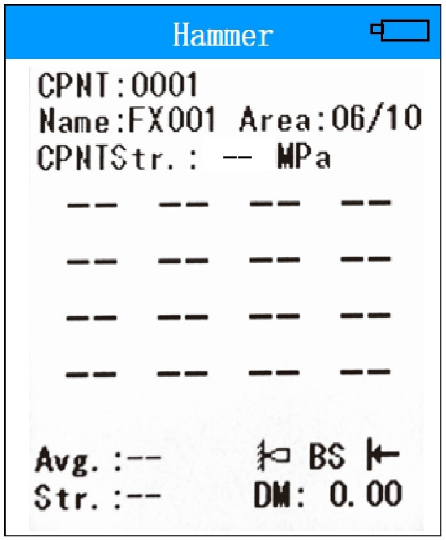

6. Measurement interface
7. Standard Configuration
Item | Commodity | Unit | Qty | Remark |
1 | Host | Set | 1 | / |
2 | Charger | Pcs | 1 | / |
3 | USB data line | Pcs | 1 | / |
4 | User manual | Pcs | 1 | / |
5 | Certificate | Pcs | 1 | / |
6 | Warranty card | Pcs | 1 | / |
7 | Packing list | Pcs | 1 | / |
8 | Software CD | Pcs | 1 | / |
9 | Package (box)） | Pcs | 1 | / |
10 | Grinding wheels and accessories | Set | 1 | / |
11 | Battery | Block | 1 | Standard |
